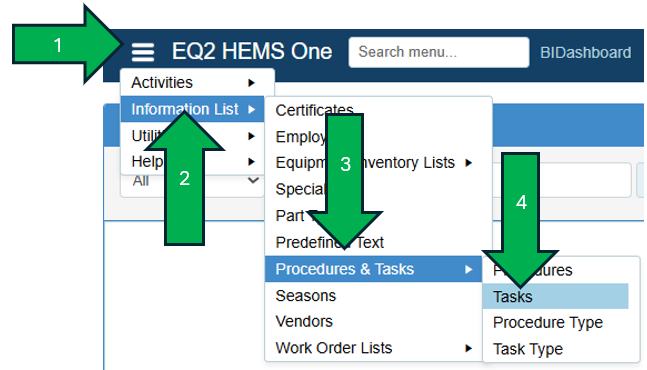

To access Task records, click on the hamburger menu in the upper left of the HEMS One window (1), followed by the Information Lists menu (2), then the Procedures & Tasks submenu (3) followed by Tasks (4).

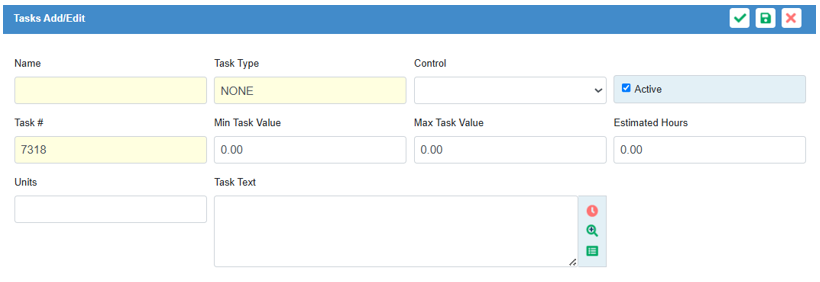

Name: The Name of the Task
Task Type: The Task Type list is predefined. This is a type-ahead field.
Control: This drop-down list provides control options for a Task.
Autosequence: the Task instructs an Electrical Safety Analyzer (ESA) to perform an Autosequence.
Analyzer Command: The Task is an ESA Command
Pass/Fail: Pass or Fail is selected on a task.
User Input: Open text result field on a task.
User Input & Pass/Fail: Pass or Fail and an open text result field for the task.
Active checkbox: If this box is checked, the Task record is active.
Task #: The system generated Task # associated with the Task. This field cannot be edited.
Min Task Value: The Minimum Value of an acceptable range of outcomes for a task.
Max Task Value: The Maximum Value of an acceptable range of outcomes for a task.
Estimated Hours: The estimated time (in decimal hours) it takes to complete the Task.
Units: The Units of the Min & Max values.
Task Text: This is an open text field used to describe the specifics of a Task.
- To add a timestamp to the Task Text field, use the clock icon to the right of the field.
- To expand the Task Text field, use the Show Expanded View magnifier icon.
- To use predefined text in the Task Text field, use the Predefined Text list icon.
